UCP211D1 X AS3S5
SIAIF UCP211D1 X AS3S5
Type

Insert ball bearings with housing

Model：UCP211D1 X AS3S5
Thickness(mm)：63.5
Inner diameter d：55
Outer diameter D：219
Contact Us
Back to List

Detailed information

<br /> <b>Warning</b>: Undefined variable $r in <b>/www/wwwroot/47.76.99.185_87/data/cache/templetes/index/index/info_product.php</b> on line <b>123</b><br /> <br /> <b>Warning</b>: Trying to access array offset on value of type null in <b>/www/wwwroot/47.76.99.185_87/data/cache/templetes/index/index/info_product.php</b> on line <b>123</b><br />

Bearing seat UCP211D1 Detailed parameters

Shaft diameter Shaft Dia.
  • d (in.)
  • d (mm)55

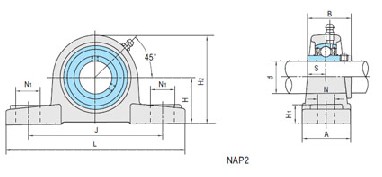

Size Dimensions(mm)(inch)
  • H63.5
  • L219
  • J171
  • A60
  • N20
  • N125
  • H123
  • H2126
  • S22.2
  • B55.6
BasicCodenameUnit No.
  • BasicCodenameUnit No.UCP211D1
bolt Bolt Used (mm) (in.)
  • bolt Bolt Used (mm) (in.)M16
Bearing Codename Bearing No.
  • Bearing Codename Bearing No.UC211D1
weight Weight (kg) (lb)
  • weight Weight (kg) (lb)3.85
Seat code Housing No.
  • Seat code Housing No.P211
